TXRF APPLICATION

EVALUATION OF WET CLEANS IN

SIC POWER MOSFET FABRICATION BY TXRF

Wet Processing for Post-epi & Pre-furnace Cleans in Silicon Carbide Power MOSFET Fabrication

ECS 2015

Abstract

Silicon carbide (SiC) device fabrication technology shares many similarities with Si manufacturing, but identifying whether material differences affect cleaning capability is of interest for this growing field. Material parameter differences include diffusion coefficients, surface energy, and chemical bond strength, all of which can play a role in cleaning critical surfaces. This work compares trace surface contamination levels (as measured by TXRF) after 100 mm or 150 mm 4H SiC wafers underwent mercury-probe capacitance voltage (MCV) mapping, to levels after subsequent cleans. Trace levels of metals such as Hg, Fe, and Ni were controllably added during MCV, and it was shown that a variety of cleaning approaches can return the SiC surface to sub-5x1010 atoms/cm2 levels of cleanliness. Where these cleans fit into an integrated device process flow and comparison of cost are discussed.

EXPLORE ECS 2015 Paper

RECOMMENDED RIGAKU SEMICONDUCTOR METROLOGY TOOLS

TXRF 3800e
TXRF 3760-1

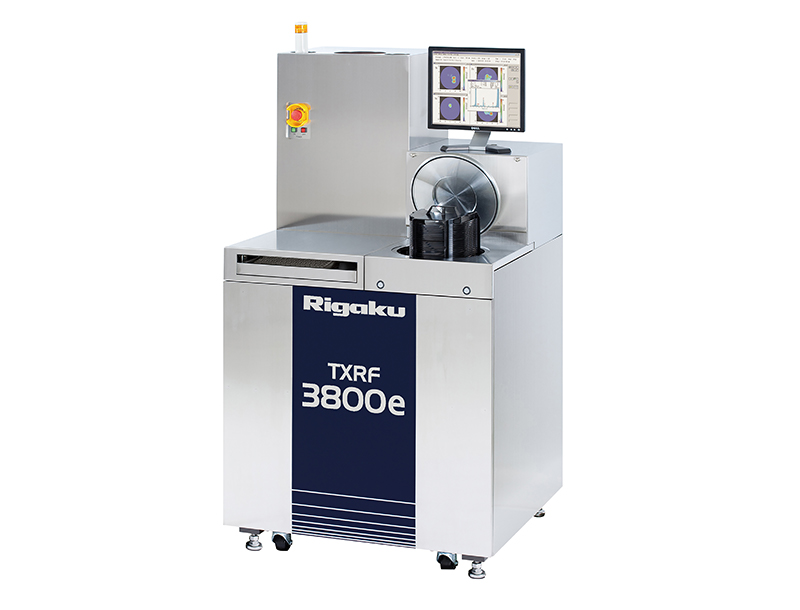

TXRF 3800e

Trace elemental surface contamination metrology by TXRF; up to 200 mm wafers.

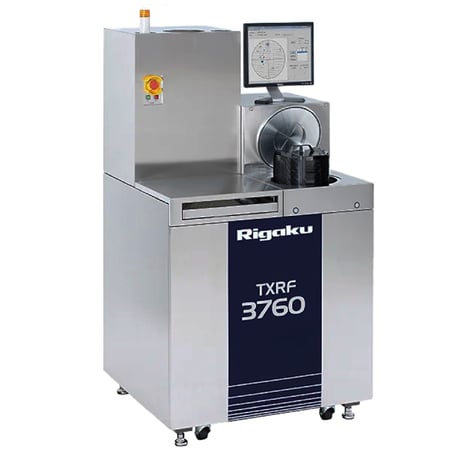

TXRF 3760

Trace elemental surface contamination metrology by TXRF; up to 200 mm wafers.

Explore TXRF 3800e
EXPLORE TXRF 3760
